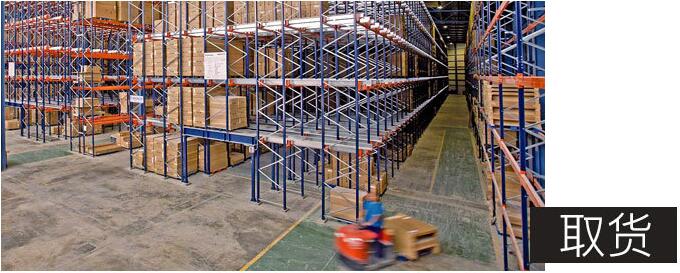

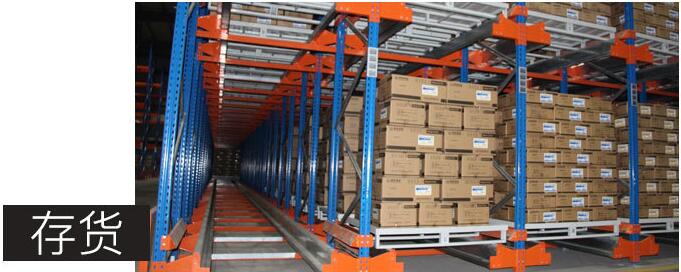

The shuttle truck rack system consists of a shuttle truck rack, a battery-powered shuttle truck and a forklift truck. A high-density pallet storage system relies on the shuttle truck to stack pallets on the rack track. Its space utilization rate is higher than that of through-shelf. Shuttle truck shelves are suitable for a large number of samples, such as food, beverage, chemicals, tobacco and other large quantities of single varieties, relatively single products in the industry, in the cold storage is very popular. For storage companies with limited storage space and smaller warehouses, it is the right choice.
1. The shuttle truck forklift powered by battery on the shuttle truck rack consists of three parts.
2. The shelf structure is more reasonable. Stability, seismic safety performance is far higher than that of driving shelves.
3. Compared with the drive-in rack, the shuttle rack can be designed deeper and denser.
4. Forklift truck types have many choices.
5. No need to enter the drive-in shelf, high loading and unloading efficiency, greatly saving space and human costs.
Technical parameters of shuttle truck rack:
Rated load: 1000kg~1500kg
No-load speed: maximum 0.9m/s
Full load speed: maximum 0.8m/s
Control mode: wireless remote control
Control Range: 50m
Ambient temperature: - 25 C - 60 C
Shuttle truck shelf product advantages:
1. Bulk Order Free Choice of Goods
2. Optional automatic function, simple operation
3. A single remote controller can control multiple shuttles separately.
4. Real-time bidirectional remote control can monitor various shuttle states, such as motor temperature, battery power, alarm content, etc.
5. Pallet spacing can be set to - Pallet depth variable - automatic calculation pallet and counter
6. Structural design is more precise to ensure smooth upper level, achieve the highest concentration of pallet goods, and greatly reduce the cost of warehouse construction.
7. Load range is wide, safe and reliable
8. Reliable safety protection design: anti-seismic, anti-collision, object damage
9. Intelligent early warning module is designed to automatically realize self-cleaning of common faults and environmental warning hazards, so that the storage system runs well.
Safety device of shuttle machinery for shuttle truck rack:
1. There are polyurethane anti-collision bars at both ends of the shuttle vehicle to reduce the impact of accidental impact.
2. Setting limit wheels to prevent the shuttle side from rubbing the track side;
3. The forklift fork baffle is set at the bottom of the shuttle truck to prevent the fork from sliding when the fork is unloaded. Anti-skid fork and cargo loading surface are made of anti-skid plate.
4. Rescue function. When the shuttle is parked on the track, the rescue device can be used to pull the shuttle out.
Electric safety device for shuttle truck rack:
1. Set up anti-collision sensor. When the blocking object in front is detected, the shuttle stops and alarms.
2. Laser limit switch is installed at both ends of the guide rail to prevent the shuttle vehicle from colliding with the guide rail at high speed.
3. Batteries are equipped with over-current protection circuit to prevent damage to batteries when the current is too high.
4_Check the tray length to ensure the whole tray on the top of the shuttle.
5. When the temperature of the motor rises to a certain extent, the shuttle car stops automatically and protects the motor.
6. Automatically check whether the tray is placed correctly to prevent the tray from tilting and causing the product to fall off.
7. Shuttle trucks can only be operated on rails, and can not be operated on forklifts.
